Environmental Noise Monitoring for Commercial Plant Operations in London

Environmental Noise Monitoring for Commercial Plant Operations in London

Project Overview and Location

Southwest Environmental Limited was recently commissioned to undertake an environmental noise monitoring project at a residential boundary in London, Greater London. The location falls under the planning jurisdiction of the London Borough of Merton. The primary objective of this instruction was to record and quantify noise levels associated with large-scale plant equipment situated at a major tennis club in the area. Specifically, the noise sources under investigation included a chiller plant, a centralized building, and broadcast facilities. The monitoring was initiated following reports that operational noise persisted continuously throughout the daytime and nighttime periods.

Acoustic Monitoring Methodology

To acquire accurate and representative acoustic data, Southwest Environmental Limited deployed a Svantek SV 307A monitoring station. The sound level meter was installed securely at the residential receptor site and was programmed to log data continuously over a designated five-day period. The scope of the monitoring recorded hourly intervals to establish a precise timeline of the ambient and operational noise climate.

The acoustic parameters measured were A-weighted to adjust the measurements to match human perceived noise levels. The primary metrics utilized in this assessment were:

  • LAeq: The A-weighted, equivalent continuous sound level, which calculates the average noise energy over a specific time period.
  • LA(90): The A-weighted sound level that is exceeded for 90% of the measurement duration. This parameter is the standard metric used to establish the underlying background sound level at a receptor.

Regulatory Standards and Assessment Criteria

The collection of LAeq and LA(90) data is fundamentally required for the assessment of commercial and industrial noise sources. The methodology applied during data acquisition aligns with the requirements of BS 4142: Method for Rating and Assessing Industrial and Commercial Sound. This standard dictates how background sound should be measured and compared against the specific sound level of the commercial operation to determine the likelihood of adverse impacts.

Our data processing categorized the continuous logging into specific reference periods, calculating the average sound levels for the daytime (08:00 – 17:00), evening (18:00 – 23:00), and nighttime (00:00 – 07:00) hours. This temporal breakdown is essential for conducting a robust BS 4142 assessment, as the sensitivity of residential receptors varies significantly between day and night. For more information on how we conduct these surveys, please visit the environmental services section on the Southwest Environmental Limited website.

Project Delivery

Environmental sound assessments often require prompt action to capture representative data during specific operational periods. For this project, Southwest Environmental Limited executed a rapid turnaround. We prioritized a short lead time for site mobilization, equipment installation, and the subsequent compilation of the acoustic data into a structured summary report.

Please contact us if you would like a fixed price quotation.

Preliminary Ecological Appraisal – Yeovil, Somerset

Preliminary Ecological Appraisal for Proposed Agricultural Development in Somerset

Southwest Environmental Limited recently prepared a Preliminary Ecological Appraisal (PEA) report for a surveying firm in Yeovil, Somerset. The site is positioned within the planning jurisdiction of South Somerset District Council. The appraisal was commissioned in connection with the proposed development of a single farmworker’s dwelling and an associated parking area. Our team completed the necessary ecological surveying and reporting with a rapid turnaround.

Methodology and Scope of Works

The ecological appraisal was conducted in strict accordance with industry standards, incorporating the CIEEM Guidelines for Ecological Impact Assessment (2024). The assessment commenced with a desktop study to identify statutory designated sites, local habitats, and geo-spatially tagged species within the site’s zone of influence. The site is located inside the Site of Special Scientific Interest (SSSI) Impact Risk Zones of Influence for multiple biological sites, including Grove Farm and Whitevine Meadows. The desktop phase also verified that the site is located 1,155 metres north of the Dorset National Landscape, an Area of Outstanding Natural Beauty. Following the desktop review, a Phase 1 habitat survey was executed to classify and map the habitats present, adhering to the standard UK Habitat Classification (UKHab) system. Further details regarding our ecological assessments can be found on the Southwest Environmental Limited ecology page.

Habitat Classification and Species Assessment

The surveyed site predominantly consists of modified grassland, covering approximately 1,618 square metres, and is characterised by a short sward dominated by perennial ryegrass. The eastern and southern boundaries contain continuous sections of mixed scrub, measuring approximately 182 square metres, comprising species such as bramble, common nettle, field elm, and elder.

During the field survey, the site was systematically evaluated for its potential to support species protected under national legislation, including the Wildlife and Countryside Act 1981 (as amended), the Conservation of Habitats and Species Regulations 2017 (as amended), and the Natural Environment and Rural Communities (NERC) Act 2006. The assessment concluded that the mixed scrub boundaries offer suitable nesting habitat for common and widespread bird species Additionally, the site provides potential foraging and commuting habitats for mammals, such as hedgehogs, and various terrestrial invertebrates. The preliminary protected species assessment also investigated the potential for roosting bats; however, the absence of onsite trees, buildings, and suitable roosting features led to a low likelihood of roosting bats being present. Similarly, the site offers sub-optimal terrestrial habitat for great crested newts due to the lack of dense tussocky cover and aquatic breeding features.

Conclusions and Site Enhancements

The overall nature conservation value of the site was determined to be low. The proposed residential development is anticipated to have a minimal ecological impact, provided that specific precautionary mitigation measures are implemented prior to and during construction. These essential measures include the directional mowing of grassland to displace any potential reptiles and the scheduling of scrub clearance outside of the active bird nesting season, which typically occurs from March to September inclusive. Consequently, no further Phase 2 species-specific surveys were deemed necessary for this project.

The development presents actionable opportunities to enhance the site’s biodiversity. Recommendations include native hedgerow planting, the creation of log piles, the installation of bat and bird boxes, and the incorporation of permeable boundaries featuring hedgehog gaps in new fencing.

Please contact us if you would like a fixed price quotation.

Lighting Assessment for Residential Development Near Woodland Habitat

Lighting Assessment for Residential Development Near Woodland Habitat

Southwest Environmental Limited was recently instructed by an architectural firm to produce a Lighting Assessment for a proposed residential development. The site is located in Buckland Ripers, Dorset, and falls within the planning jurisdiction of Dorset Council.

The Development

The proposed development comprises the construction of a single residential dwelling, a garage, and an associated garden. Environmental constraints were a primary consideration for this site. The location is situated 1.6 kilometres from the Dorset National Landscape Area of Outstanding Natural Beauty (AONB). Furthermore, a woodland area is located just over 20 metres to the south of the proposed dwelling. Ecological surveys previously conducted at the site identified the presence of Myotis bats within this woodland. Myotis bats are known to be highly sensitive to artificial light, necessitating careful planning and mitigation.

Objectives

The objective of our Lighting Assessment was to design a lighting scheme that meets the safety and operational requirements of the future human occupants while preventing light spill that could negatively impact the adjacent bat habitat. The assessment was conducted in accordance with relevant legislation, including the Planning (Clean Neighbourhoods and Environment) Act 2005, and national planning policies which require new developments to limit the impact of light pollution on nature conservation.

To achieve the necessary control over light emission, we developed a strategy adhering to the guidelines set out by the Institute of Lighting Professionals and the Bat Conservation Trust. External lighting is restricted to narrow-beam, horizontal cut-off LED downlighters mounted at low elevations, specifically 0.6 metres and 1.6 metres above ground level. These luminaires will be fitted with passive infrared (PIR) and dawn-to-dusk sensors to ensure they are only active when required. We specified a warm colour temperature range of 2700k to 3000k to minimise the ultraviolet light output, which is known to attract insects and disrupt bat foraging patterns. Up-lighting was strictly prohibited across the entire site.

A bright, modern lecture space with large windows and colorful blue, yellow, and red tiered seating.

A Well Lit Space

Internal light spill was also evaluated as a critical factor due to the proximity of the southern woodland. To address this, the design incorporates electrochromic glass on the windows of the front entrance. This dynamic glazing activates when internal lighting is switched on, providing up to a 90 percent reduction in visible light transmission through the glass.

Method & Outcome

We utilised lighting design software to model the proposed external and internal lighting, producing lux contour plans for both horizontal and vertical planes. The quantitative analysis demonstrated that horizontal light spill on the ground would remain below 0.5 lux around the immediate development, dropping below 0.2 lux well before reaching the woodland edge. Vertical luminance along the woodland boundary was also shown to be predominantly below 0.2 lux, ensuring the bat habitat remains sufficiently dark. Construction phase mitigation measures were also detailed to prevent temporary light spill during the build.

This comprehensive analysis and the accompanying mitigation strategy were completed with a short lead time to assist the client in maintaining their planning submission schedule.

Please contact us if you would like a fixed price quotation.

Louder Cooling Systems Owing To Climate Change

The Hidden Sound of Climate Change: Why Our Cooling Systems are Getting Louder

When we talk about the impacts of climate change, the conversation naturally gravitates toward rising temperatures, extreme weather, and shifting ecosystems. But there is another, far less discussed side effect of a warming world: it is getting significantly louder.

As global temperatures and humidity levels rise, our reliance on air conditioning and heavy refrigeration systems is skyrocketing. To see this in action, we only need to look at a recent noise monitoring project we were commissioned to undertake.

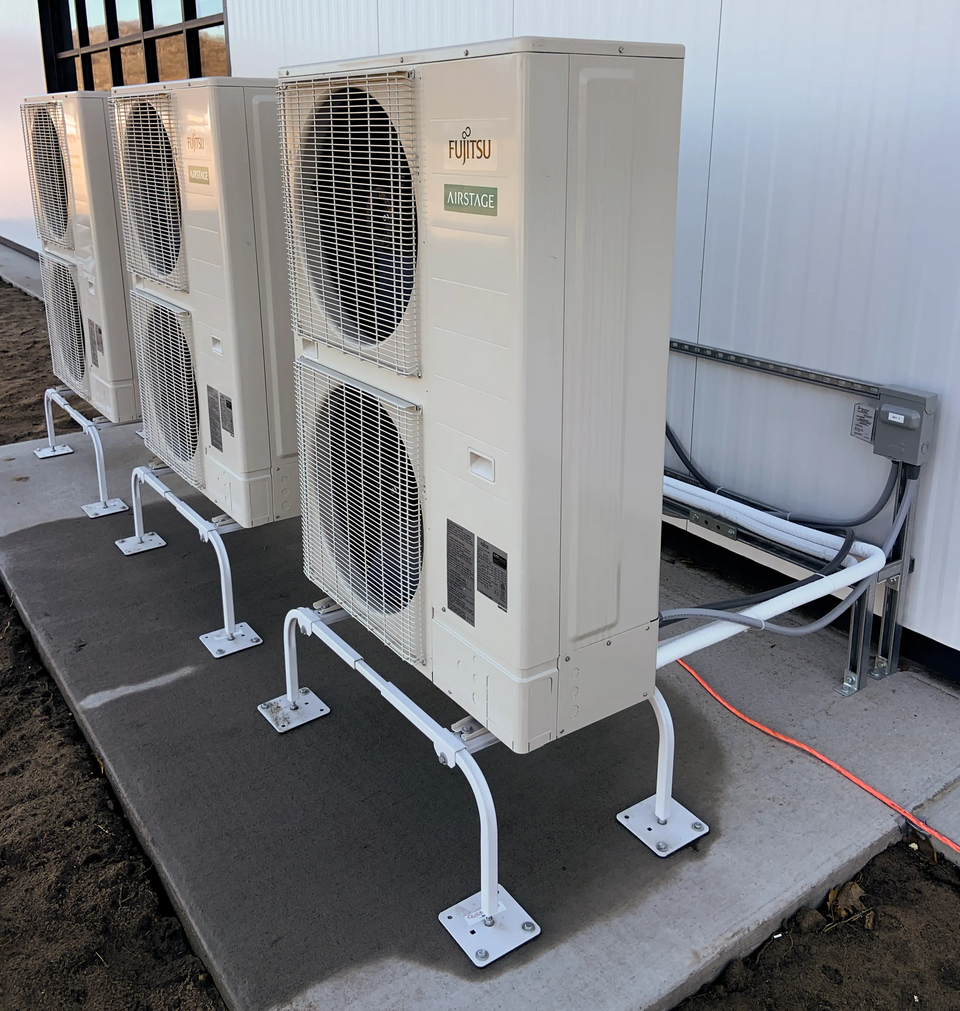

A diagonal shot of three heat pumps, each with two vertically stacked fans, mounted on a tubular steel base on a flat surface. White tubing emerges from the back of the closest unit. Behind the pumps, galvanized brackets secure cables and pipes to a tall white wall, and a multi-paned black window glows with yellow light from inside the building.

Large AC Unit

The Case Study: A Large Sports Facility in Wimbledon

We were recently called in to assist a local residents’ group living in the shadow of a large, well-known sports facility in Wimbledon. Their complaint is becoming increasingly common in urban and suburban areas: the mechanical hum of the facility’s air conditioning and refrigeration units has become unbearable.

The worst of the noise pollution seems to occur during major events, particularly when the stadium’s roof is closed, forcing the environmental control systems to work at maximum capacity to keep spectators comfortable. Even more frustrating for the locals is that these cooling systems are now occasionally running well past their standard 11 PM curfew.

To investigate, our team is deploying remote noise monitors in the back gardens of affected homes to capture real-world data over a couple of weeks. By comparing these live running noise levels against the facility’s original baseline noise report and planning permission limits, we can determine exactly how much the acoustic environment has degraded.

Why is the Noise Getting Worse?

According to the residents, when this cooling equipment was first installed roughly 10 to 15 years ago, the noise was noticeable but manageable. Today, it feels constant. While aging equipment and routine maintenance factors certainly play a role, the changing climate is the primary driver.

Here is exactly how shifting weather patterns are turning up the volume on local infrastructure:

  • Hotter, More Humid Days: Anecdotally (though supported by meteorological trends), the nature of our summer heat is changing. We aren’t just seeing higher peak temperatures; we are experiencing intense, sticky humidity that we haven’t historically dealt with in the UK. Cooling systems have to work much harder to strip moisture from the air, meaning fans and compressors are running at full tilt more consistently than they were designed to a decade ago.

  • Warmer Nights: The residents noted that the AC systems are running much later into the night. Because overnight temperatures are failing to drop to historical averages, facilities can no longer rely on natural nighttime cooling. Mechanical systems are forced to bridge the gap, running deep into the night and breaching traditional noise curfews.

  • The “Greenhouse” Effect of Enclosed Stadiums: When facilities close their roofs to protect events from unpredictable weather, they inadvertently trap heat and humidity. Blasting the AC to compensate creates an acoustic double-whammy: the systems work harder, and the noise generated is often pushed outwards toward the surrounding neighborhoods.

The Acoustic Reality: We are currently relying on mechanical infrastructure designed for the climate of 2010 to handle the extreme weather of today. The result is overworked machinery, higher energy consumption, and a lot more noise.

Planning for a Louder Future

This project in Wimbledon highlights a growing challenge for environmental acoustic consultants, urban planners, and local councils.

When large commercial facilities conduct their initial noise impact assessments, the baselines are calculated using historical climate data. If a system only needed to run at 50% capacity for a few weeks a year when it was installed, its acoustic footprint was likely deemed acceptable. But when that same system is forced to run at 90% capacity for months on end—and late into the night—those original noise limits are easily shattered.

As we continue to adapt to hotter summers, we must ensure that our noise regulations and equipment standards adapt alongside them. Otherwise, we risk trading the discomfort of the heat for the exhaustion of sleepless, noisy nights.

Here is an additional section you can slot right into the blog post, perhaps just before the concluding “Planning for a Louder Future” section:

The Crucial Role of the “+5 Decibel” Planning Condition

When investigating noise complaints like the one in Wimbledon, our primary point of reference is the facility’s original planning permission. One of the most important tools local councils use to protect residential amenity is a specific noise condition—often stipulating that the noise from mechanical plant (like AC and refrigeration units) must not exceed the existing background noise level by more than a set amount, typically 5 decibels (5 dB).

Here is why this specific condition is so critical, especially in a warming world:

  • It Relies on Context, Not Just Volume: Background noise drops significantly at night when traffic dies down and people go to sleep. A cooling unit that blends into the daytime hum of a city can sound like a jet engine at 11 PM. By tying the noise limit to the background level rather than a fixed number, the condition ensures that the acoustic character of the neighborhood is protected during its quietest, most vulnerable hours.

  • The “Noticeability” Threshold: In acoustics, an increase of 5 dB is generally the point where a new noise becomes clearly noticeable and potentially intrusive to the human ear. If AC units were allowed to operate unchecked without this cap, creeping noise pollution would slowly erode the quality of life for nearby residents, leading to stress, sleep deprivation, and a loss of enjoyment of their own homes.

  • A Measurable Line in the Sand: As climate change forces older AC systems to work harder and run later into the night, facilities can easily stray from their original operating parameters. The 5 dB limit provides an objective, measurable threshold. When residents complain that the noise has “gotten worse,” acoustic consultants can place a monitor in their garden, capture the real-time data, and definitively prove whether the facility is breaching its legal planning limits.

Ultimately, this standard prevents facilities from passing the environmental cost of their cooling needs onto their neighbors. As our summers get hotter, enforcing these strict background-relative limits will be our best defense against the creeping roar of urban infrastructure.

If you have a problem with Noise from Air Conditioning Units then Please contact us.
